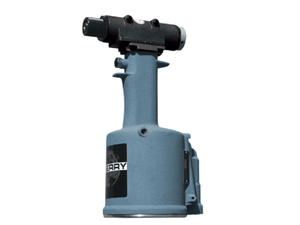

Riveting l Pneumatic Riveters l G784 Hydro-Shift CherryLOCK® Riveter
 |
• Cheery • Air Pressure 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max. • Stroke 7/8 inch (22.2 mm) • Pulling Force 2,600 lbs. (11.57 kN) @ 90 PSI (6.2 bar), • Weight 8 lbs. (3.63 kg) • Noise Level 69.7 dB (A) • Vibration less than 2.5 m/s2 • Air Consumption .27 SCF/cycle (7.65 L/cycle) |
|||
To Install |
Tool |
CherryMAX® type blind rivets |
G747, G704B, G746A, G750A, G27, G83, G84, G744* |
SST®blind rivets |
G747, G704B, G746A, G750A, G27, G83, G84 |
CherryMAX®‘AB‘ type blind rivets |
G747, G704B, G746A, G750A, G27, G83, G84 |
CherryLOCK® rivets |
G700, G784, G689, G686B-S, 695B |
CherryLOCK®‘A‘ rivets |
G746A, G704B, G747, G750A, G30 |
MBC® and MBC® lock creator rivets |
G746A, G704B, G747, G750A |
MS type blind rivets |
G704B, G746A, G747, G784, G689, G686B-S, G29 |
Nut-plate blind rivets |
G747, G704B, G29, G746A, G702A, G902, G902-15 |
Maxibolt™ blind bolts |
G83, G84, G84LS, G87D, G750A, G85D-S, G744* |
Lockbolts |
G83, G84, G84LS, G87D, G85D-S |
